Quick summary
The Sub-Zero panel limits, model by model
Sub-Zero publishes a maximum custom panel weight for every model. Most Classic models allow 50 lb per panel, a handful allow 75 lb, and a grille panel is 13 lb. Designer columns run from 45 lb at 18 inches to 75 lb at 30 and 36 inches, with drawers at 15 lb.
- Sub-Zero Classic models
- 50 lb per panel, with a handful allowing 75 lb
- Sub-Zero grille panel
- 13 lb
- Sub-Zero Designer columns
- 45 lb at 18 inches, 75 lb at 30 and 36 inches
- Sub-Zero Designer drawers
- 15 lb
The Sub-Zero fridge panel limits, and why they are absolute

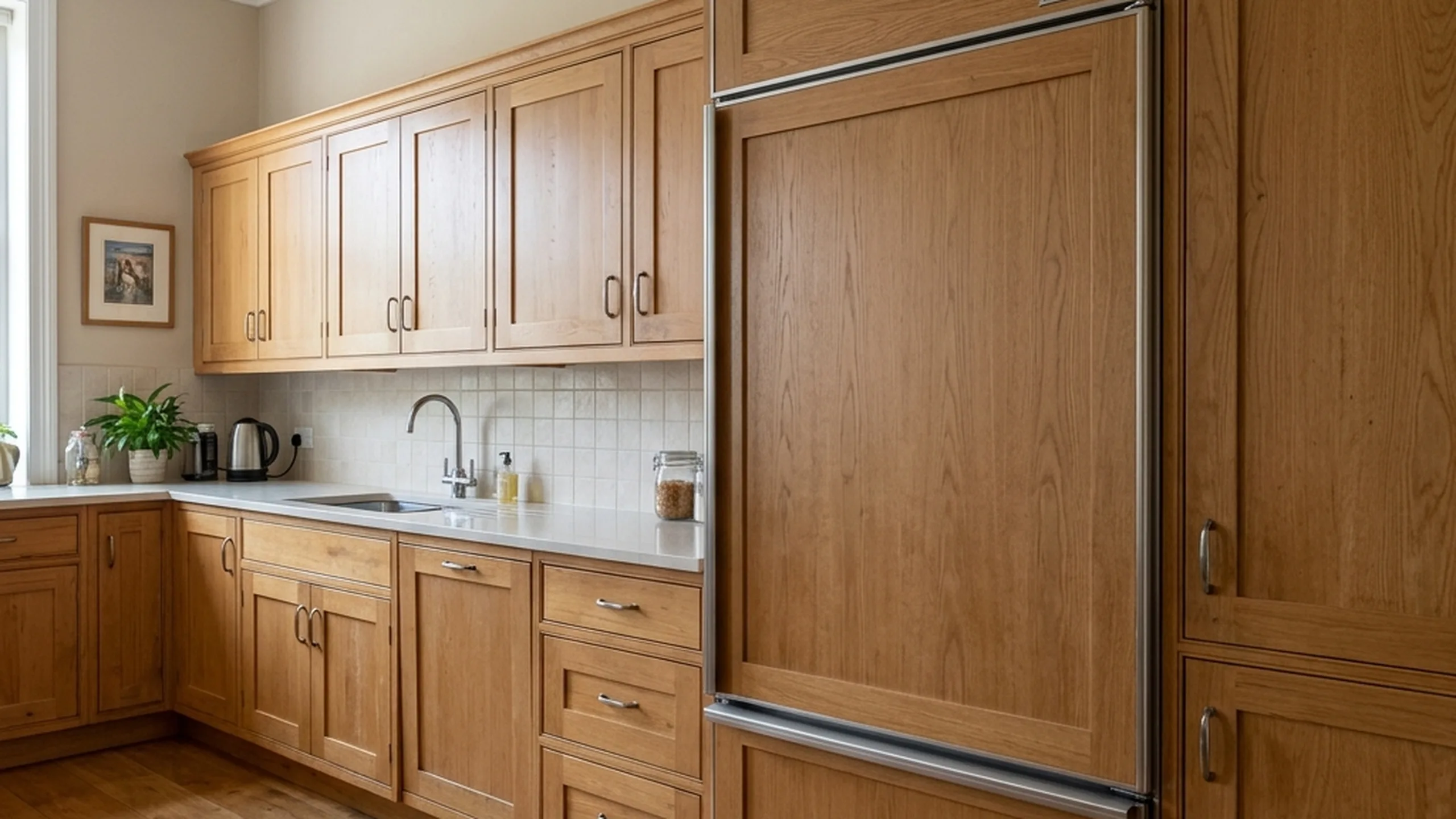

A panel-ready Sub-Zero is engineered to carry a custom panel up to a published weight and no further. The number is not a guideline about appearance: it is what the hinge and the closer cam were designed around. Exceed it and the door sags, the gasket opens at the top, and no adjustment will hold it.
This is the single commonest fault we attend in Manhattan, because bespoke joinery here is usually solid timber and a cabinetmaker matching a run of doors has no reason to know the appliance has a limit. It is the reason Sub-Zero refrigerator repair in Manhattan so often starts with a set of scales rather than a meter.
Sub-Zero Classic panel weights
Most Classic models allow 50 lb per panel. A handful allow 75 lb. The grille panel, which is the separate piece across the top, is 13 lb. Those three figures cover the majority of full-height built-ins in this city.
Sub-Zero Designer column and drawer weights
Designer columns scale with width: 45 lb at 18 inches, rising to 75 lb at 30 and 36 inches. Designer drawers are 15 lb, the same figure as an undercounter cabinet, and that is the limit people breach most often because a drawer front looks like it should weigh nothing.
What an overweight Sub-Zero panel does to the hardware
The hinge carries the door plus the panel, continuously, through every opening. Past the limit it wears rather than fails outright, so the door drops by degrees, and a hinge replaced without addressing the panel will wear again exactly as the first one did.
Weighing a Sub-Zero panel before it goes on
It is far easier to weigh a panel on the bench than to diagnose a sagging door two years later. If a panel is already fitted and the door has dropped, the question is whether the panel can be lightened, which is usually a matter of its core rather than its face.
Where it cannot, the honest answer is that the door will keep dropping, and we will say so rather than fit a gasket that is going to fail the same way.
Check this yourself before you call us in Manhattan
If you know the model, we can tell you the published limit for it over the phone at no charge. If a panel is not yet made, weighing it on the bench costs nothing and prevents the whole problem.
Call us if the door has already dropped, if the reveal against the joinery has gone uneven, or before a cabinetmaker commits to a panel you are not sure about. Call (888) 470-3377, seven days a week from 7am to 9pm, or see the areas we cover.
Questions we are asked on these calls
How heavy can a Sub-Zero custom panel be?
Most Classic models allow 50 lb per panel and a handful allow 75 lb. Designer columns run 45 lb at 18 inches up to 75 lb at 30 and 36 inches, drawers are 15 lb, and a grille panel is 13 lb.
What happens if the panel is too heavy?
The door sags, the gasket opens at the top and no adjustment holds it. The hinge wears rather than failing outright, so it happens by degrees over months.
Will a new hinge fix a sagging Sub-Zero door?
Only if the panel is within its limit. A hinge replaced on a cabinet carrying an overweight panel will wear again exactly as the first one did.
Does the grille panel count towards the door panel weight?
No, it is a separate limit. The grille panel across the top is 13 lb in its own right.
How do I find the limit for my model?
It is model-specific and published by Sub-Zero. Read the model number from the serial tag and we can tell you the figure for that cabinet before any joinery is made.
