Quick summary
The Sub-Zero closing action, and what governs it
A Sub-Zero door draws itself shut over the last part of its travel, using a closer cam at the base of the door and the door’s own weight. A door that drops, swings open or needs a shove has a worn hinge, a worn closer cam, or a custom panel over its published weight.
- Sub-Zero closer cam
- At the base of the door, using the door’s own weight
- Cause one
- A hinge worn by the door plus its custom panel
- Cause two
- A closer cam that no longer pulls the final inch
- Cause three
- A custom panel over the published maximum weight
The Sub-Zero fridge closing action, explained
A Sub-Zero door is not simply hung on hinges. A cam at the base uses the door’s own weight to pull it through the last part of its swing, which is what makes it close firmly from a gentle push rather than needing to be slammed.
When the cam wears, the door stops fractionally short and rests there. It looks closed. The gasket never engages, the cabinet draws room air all day, and the first thing most people notice is the ajar alarm at two in the morning, which is why Sub-Zero refrigerator repair in Manhattan so often begins with a call about a noise rather than about temperature.
Sub-Zero door hinge wear
The hinge carries the entire weight of the door plus whatever panel is hung on it, through every opening. Sub-Zero publishes a maximum panel weight for every model precisely because that load is finite, and a hinge on a cabinet carrying too much wears steadily rather than breaking.

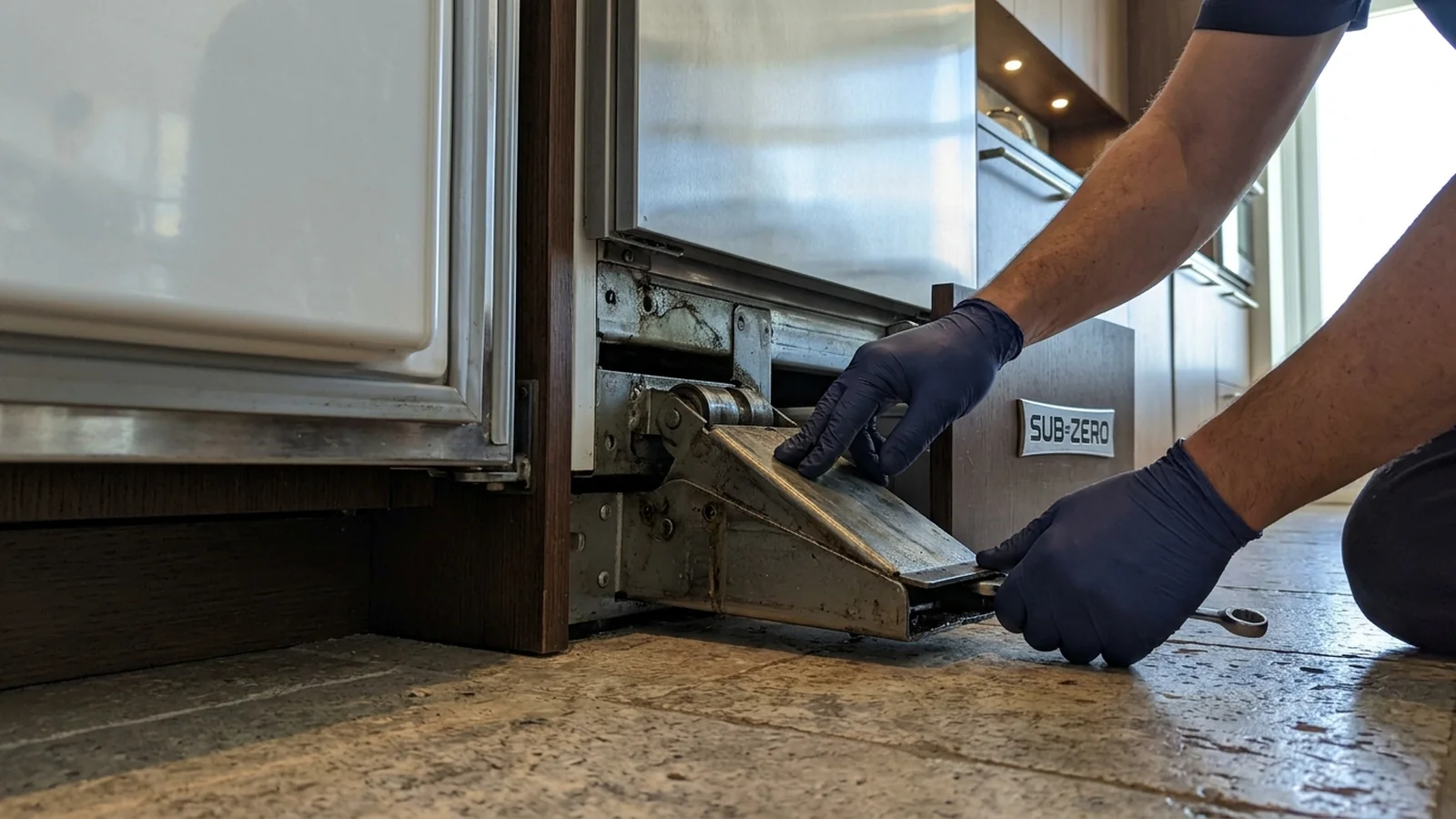

Sub-Zero closer cam replacement
The cam is a wearing part at the foot of the door, and replacing it restores the closing action directly. It is worth confirming the panel weight at the same visit, because the cam wears in proportion to the load it is asked to pull.
Sub-Zero door reveal against the joinery
In a fitted kitchen the reveal is the early warning. A door that has dropped by an eighth of an inch shows as an uneven gap against the surrounding cabinetry long before it shows as a temperature problem, and correcting it at that stage is a far smaller job.
Diagnosing a Sub-Zero fridge door that will not stay shut
Work in order. Weigh or estimate the panel first, because if it is over the limit everything downstream is a symptom. Then check the reveal for a drop. Then test the closing action from a few inches open: a healthy cam takes the door the rest of the way on its own.
Only after those three does the gasket come into it, and by then you usually know whether replacing the seal will hold.
Test this yourself before you call us in Manhattan
Open the door a few inches and let go. A healthy cam takes it the rest of the way on its own. Then look at the reveal against the surrounding joinery for an uneven gap. Both checks are free and they tell you which of the three causes you are dealing with.
Call us if the door no longer pulls itself shut, or if the reveal has gone out. Caught at the reveal stage it is a far smaller job than after the gasket has started failing. Call (888) 470-3377, seven days a week from 7am to 9pm, or see the areas we cover.
Questions we are asked on these calls
Why does my Sub-Zero door not close by itself any more?
Most often the closer cam at the base of the door has worn. It uses the door’s own weight to pull the last part of the swing, and when it wears the door rests fractionally open.
What are the three causes of a Sub-Zero door that will not close?
A worn hinge, a worn closer cam, or a custom panel heavier than the published maximum for that model. The panel is the first thing worth checking.
My door looks closed but the alarm sounds. What is happening?
It is resting fractionally short of closed, so the gasket never engages and the door switch does not register it. A worn closer cam is the usual cause.
Can a dropped Sub-Zero door be adjusted back?
Within the range the hardware allows, yes. If the panel is over its published weight the adjustment will not hold, and the panel has to be addressed first.
How early can a door alignment problem be spotted?
At the reveal. In a fitted kitchen an uneven gap against the joinery shows a drop long before the cabinet loses temperature, and it is a much smaller job at that point.
